HELITRONIC POWER DIAMOND 400
The flexible eroding and grinding machine

HELITRONIC POWER DIAMOND 400

Basic Data

The tool eroding machine HELITRONIC POWER DIAMOND 400 with C.O.R.E.-Technology can erode tools made of PCD/CBN material and grind tools made of high-speed steel/carbide.

It can produce tools with a diameter of 3 to 380 mm, a machining length of up to 520 mm and a piece weight of up to 50 kg.

New with Laser Contour Check option!

Features

Gantry design

The WALTER gantry design in cast iron with its good damping properties ensures excellent tool surfaces.

Belt-driven spindle with two spindle ends

The powerful belt-driven spindle with two spindle ends can accommodate up to 3 electrodes resp. 6 grinding wheels with a maximum diameter of 254 mm and has a maximum peak power of 24 kW.

Linear axes

The machine has three linear axes X, Y, Z with ball screws and a maximum traverse speed of 15 m/min.

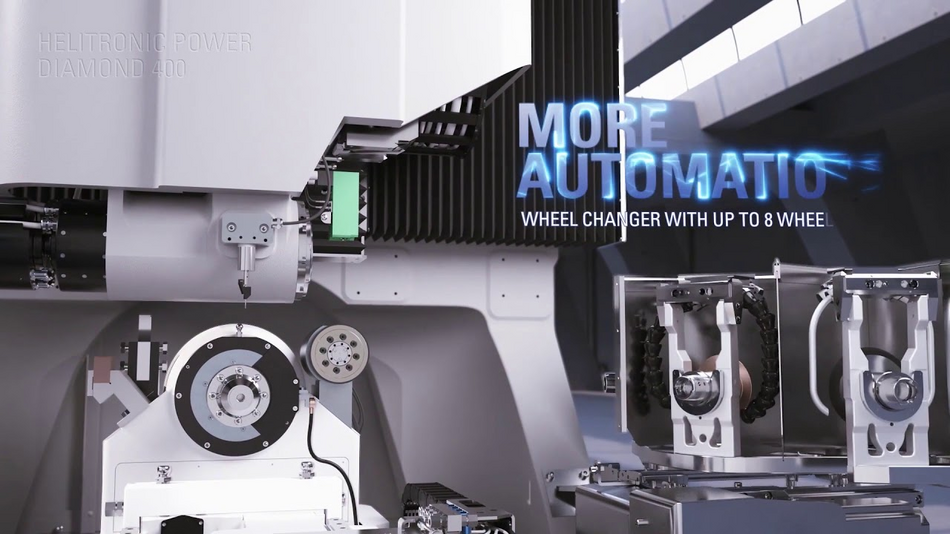

Option Grinding wheel changer 4/8

With a capacity of 4 to 8 grinding wheel adapters, the grinding wheel changer multiplies the grinding wheel capacity of the HELITRONIC POWER DIAMOND 400.

Fine Pulse Technology

The latest eroding technology for a great eroding process. Excellent surface finish and minimal chipping

Laser Contur Check

The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.

Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 650 mm
Max. Travel Speed X 15.000 mm/min
Max. Travel Y 350 mm
Max. Travel Speed Y 15.000 mm/min
Max. Travel Z 720 mm
Max. Travel Speed Z 15.000 mm/min

Spindle drive

Max. Spindle Power 24 kW
Max. Number Of Revolutions 7.000 / 10.000 /min
Max. Grinding Wheel Diameter 254 mm

Swiveling Axes

Swiveling Range A ∞ °
Swiveling Range C 200 °

Workpiece Data

Workpiece Length 520 mm
Workpiece Diameter 3 - 380 mm
Max. Workpiece Weight 50 kg

Linear Axes

Max. Travel X 25.59 inch
Max. Travel Speed X 591 inch/min
Max. Travel Y 13.78 inch
Max. Travel Speed Y 591 inch/min
Max. Travel Z 28.35 inch
Max. Travel Speed Z 591 inch/min

Spindle drive

Max. Spindle Power 32,18 hp
Max. Number Of Revolutions 7,000 / 10,000 rpm
Max. Grinding Wheel Diameter 10 inch

Swiveling Axes

Swiveling Range A ∞ deg
Swiveling Range C 200 deg

Workpiece Data

Workpiece Length 20.47 inch
Workpiece Diameter 0.12 - 14.96 inch
Max. Workpiece Weight 110 lbs
